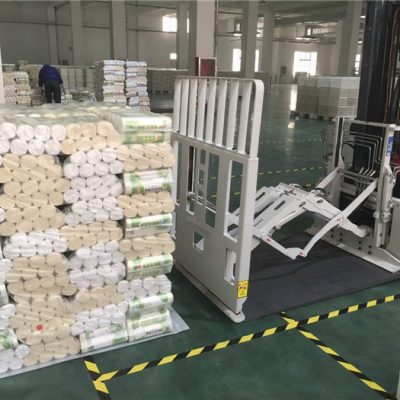

Hidravlični viličarji pritrdilni stabilizatorji

Pomemben sestavni del aplikacije in konfiguracije izdelka

1, hidravlični sistem: distribucijo z nastavljivim ventilom za nadzor tlaka lahko prilagodite po potrebi; tesnilni deli so uvoženi izdelki; visokotlačna cev s stožčastim tesnilom, visokozmogljiva uvozna cev.
2, strukturni deli: glavni sestavni deli iz visoko trdnega jekla, z dobro odpornostjo proti deformacijam, oblikovani obliko, preprosto in velikodušno.
3, mehanske lastnosti: skozi nastavitev cilindra na različne višine glede na blago / odprto nastavitev, dober vid; Dodajte skupino, ki ustreza zahtevam asfalta.
4 Uporaba: široko uporabljena v sektorju trgovine s hrano, pijačami, uvozom in izvozom, ki se večinoma uporablja za stabilizacijo tovornega pladnja, da se izognemo premikanju procesa previsoko za tovorni drsnik.

Opomba

---

1,the actual truck / carrying capacity is a comprehensive factory obtained from the forklift.

2,this is a matching increase in group 1 required additional forklifts require asphalt.

Hitre podrobnosti

---

Kraj izvora: Fujian, Kitajska (celina)
Blagovna znamka: HUAMAI
Model Number: WD30J-A1
Product Name: Load Stabilizers
Type: WD30J-A1
Installation Grade: II
Adaptation Forklift: 1-2.5 t
StrokeB: 960-1970 mm
Level Focus: 240 mm
Omission From ET: 124 mm
Weight: 190 kg
Pressing Force Plate: 100-160 bar
MOQ: 1SET

---

It’s been said that the single-double forklift attachment may have been the greatest thing to happen to material handling productivity in the last thirty years. The single-double allows a standard forklift to carry two pallets at a time instead of one.

we sell single-double pallet handler which can hydraulically lift, carry and side-shift multiple pallets side by side. Moving double the loads means fewer trips and greater productivity, and side-shifting allows faster, more accurate loading of trucks and containers.

Standard features include:

Dual class II and III mountings, easily field converted
Bolt-on interchangeable forks can be rotated for increased life and easy servicing
Arm bars give drivers a clear view of the fork tops
Adjustable fork stop blocks to fit different pallet sizes
Easy-to-service hydraulic cylinders

Opcije:
- Various load backrest configuration heights
- Load stabilizers and hold downs
- Various fork lengths and sections
- Various fork set spreads and opening ranges
- Quick-disconnect lower hooks
- Drop shank forks (forks are lowered relative to the attachment frame)
- Independent fork set control–allows moving left or right fork set independent of the opposite fork set
- Non-side-shifting models

IMPORTANT: adding a forklift attachment impacts the net capacity of your lift. Always buy from a reputable dealer and an experienced product rep.

- When buying a new forklift, mention any attachments you plan to add during the quoting phase.
- Customers who want a single-double with side-shifting capacity need to have a forklift with 4-hydraulic function and a higher capacity truck.
- Customers who will only use a single-double seasonally, or would like the option to easily swap the single-double for a different attachment such as a normal side-shift carriage, should buy a forklift with quick disconnects at the hydraulic hosing termination. This reduces attachment changeover time considerably.

View our inventory of single-double forklift attachments for sale. We also have a variety of forklift attachments, including single-doubles, available for rent. We also rent paper roll clamps, carton clamps, and fork rotators.

For questions, contact us online, or by phone. We look forward to earning your business.
